Abadis transparent polycarbonate suction canister with printed graduations

Home › Products › Medical Canisters

Medical Canisters

Transparent polycarbonate, graduated and autoclavable

Graduations and the Abadis mark, printed on the body

Rear mount for stands, bed consoles and walls

Three sizes: 1, 2 and 3 litres

3D model from the genuine canister CAD

Abadis polycarbonate suction canister

Suction canisters, Wall suction, Collection cup, Fat collection canister system

Suction canisters

Suction canisters

The suction canister is a polycarbonate jar that holds a disposable suction bag.

Uses

It mounts on any fixed base, on bed consoles, on the wall, and on portable suction units.

Volume

1 litre, 2 litres, 3 litres

Material

Transparent polycarbonate

Features

Resistant to breakage, washable and autoclavable, light, and graduated.

Product nameProduct code
Final Abadis suction canister, 1 litre0402011
Final Abadis direct suction canister, 2 litres0402012
Final Abadis direct suction canister, 3 litres0402013
2-litre suction canister with hose and connectors0402102
3-litre suction canister with hose and connectors0402103

Sizes, codes and specifications

Pick a size. The film at the top of the page shows the same size. The 2 L and 3 L canisters also come as a set with hose and connectors.

Size

Volume1 L
Outer diameter13 cm
Inner diameter12.2 cm
Height18 cm
Product code0402011

3D model

3D model of the 1 litre canister from the genuine CAD. Tap the button, then drag to turn it.

3D model of the 1 litre canister from the genuine CAD. Tap the button, then drag to turn it.

Product code

Product nameProduct code
Final Abadis suction canister, 1 litre0402011

Technical specifications

Weight220 g
Dimensions12.2 × 18 cm
PackagingNylon
Quantity per pack1 pc
Quantity per carton36 pcs

Source: the product page on abadis-med.com.

Watch the 1 litre canister 3D film

Wall suction

ساکشن دیواری

Wall suction can be used in any part of the hospital that has a central vacuum.

Components

Wall suction includes one metal regulator, a filter that shuts off when fluid passes, a suction canister with connectors, and a wall clamp for mounting on a console.

Features

  • The main parts are metal and brass.
  • An analog gauge marked in bar and mmHg.
  • A REG/OFF push button to connect or disconnect the vacuum quickly during use.
  • Impact resistant, and it does not break over long use.
  • A knob sets the vacuum and reaches the maximum in 1.5 turns.
  • Accepts the connectors used to join wall suction to the outlet.
  • Working range 0 to −1 bar.
  • Nickel-chrome plating, so fluids and air do not shorten its life.
  • No diaphragm, so the unit lasts longer.
  • Straightforward to use.
  • Five-year warranty on functional failure.
Product nameProduct code
1-litre wall suction, model VR-A10402201
2-litre wall suction, model VR-A10402202
3-litre wall suction, model VR-A10402203

Collection cup

Abadis Collection Cup (code 0402300): transparent cup with a white mesh basket inside

The Abadis collection cup collects and separates particles in suction fluid. A sample can be taken without touching the collected fluid, which avoids contamination, leaks and sampling errors.

Advantages

  • Collects particles from fluid drained during medical procedures.
  • A separator that keeps the user away from the fluid and the particles.
  • Single use, for safety, less contamination and infection-control practice.

Uses

  • Operating room
  • Sampling fluids that contain particles
  • Collecting a sample for laboratory and pathology examination
  • Hospital suction systems that use a disposable suction bag
Product nameProduct code
Collection cup0402300

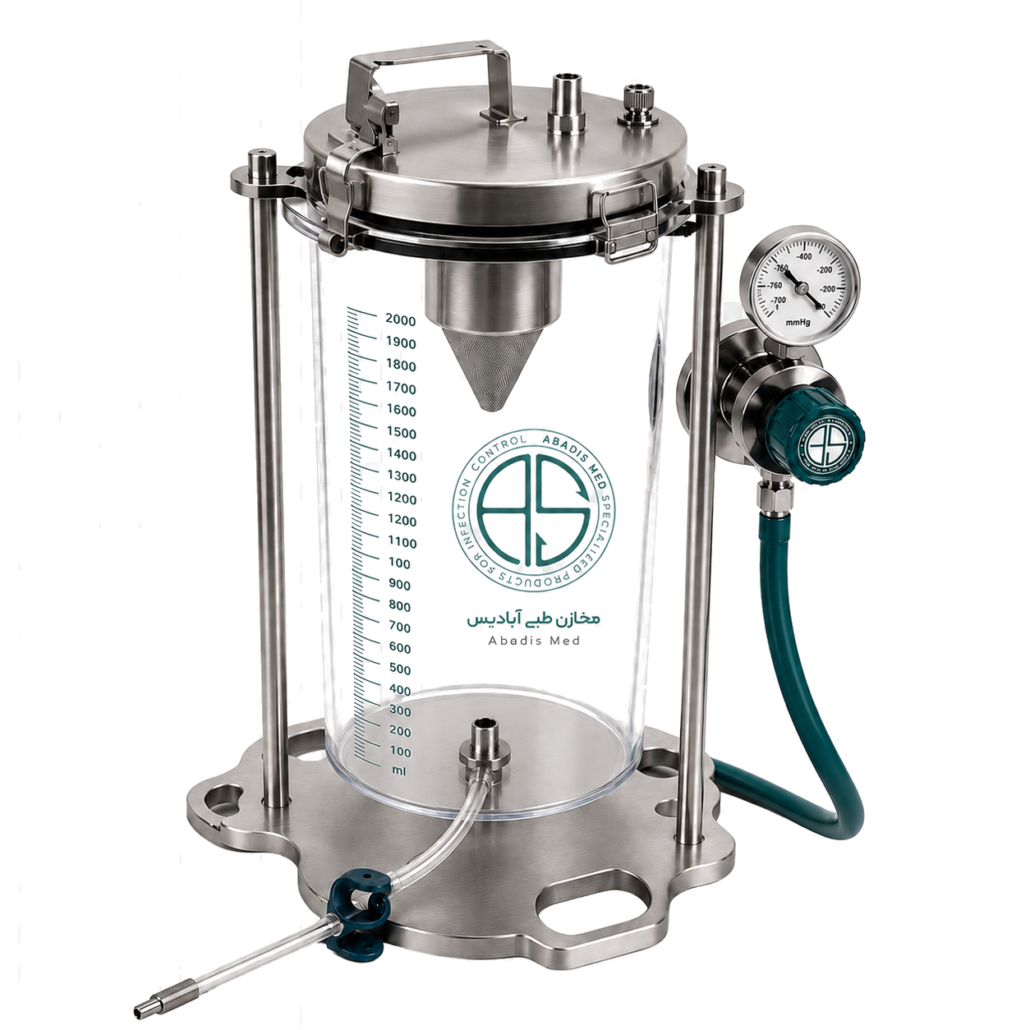

Fat collection canister system

No separate photo of this product is in the archived siteNo separate photo of this product is in the archived site

The Abadis fat-collection system connects to a liposuction unit and collects the harvested fat in a closed, graduated canister. After liposuction and fat preparation, the canister outlet is connected to the unit’s injection pump and the fat is transferred to the recipient site through the dedicated hose and cannula. Harvesting and reinjection are then one workflow in the same procedure.

Features

  • Connects to the injection pump of the liposuction unit
  • Transfers fat in a closed, controlled circuit
  • For transferring and injecting fat after liposuction
  • Fewer manual transfers of fat between containers
  • Limits contact between the harvested fat and the room
  • Injection flow is controlled from the unit’s pump
  • Keeps harvesting, preparation and injection in one sequence
Product nameProduct code
Fat collection canister system

Disposable kidney dish

Disposable kidney dish

The disposable kidney dish is a shallow, graduated, kidney-shaped bowl used in hospitals, clinics and dental and aesthetic practices for:

  • Holding samples taken from patients for laboratory examination
  • Holding and moving surgical instruments during a procedure
  • Holding patients’ dressings
  • Washing surgical instruments with sterile water
  • Keeping instruments sterile
  • Making counting easier
  • Storing instruments when they are not in use

Advantages

  • Single use
  • Light, and easy to carry
  • Autoclavable
  • Better hospital infection control

Material

  • New polypropylene plastic, and it can be autoclaved

Capacity

  • 600 ml

Carton: 35.5 × 24.5 × 49 cm. Quantity: 400 per carton.

Ready to supply your centre

Contact the Abadis sales team for a price list, a sample, or installation.
